P6 Outdoor HD Digital Billboard Conventional LED for Advertising Panel Screen
Features of LED Billboards.
1. High resolution: The most apparent features of the new generation of LED display.
2.Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC..
3.Easy maintenance: After adopting the classic back maintenance,it's applied to large size LED and roof mounting,wall mounting and pillar base.
4. High intensity and can be adjusted, so can meet the request of the customers according to the application environment.
5.Long-term Brightness:6000-nit brightness(for outdoor full color) throughout product lifetime of the LED display.
6. 100% Waterproof LED module: 100% waterproof module design,protection level IP65,PCS connections replace the
traditional electronic line which is safe and reliable.
Specifications
| | BOF-6 |
| Physical Pitch | 6.67mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 |
| Physical Resolution of Panel (W*H) | 192*144 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree
H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/
10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Procesure Details
Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line, you can see at every angle, at this range, no picture change, no color excursion
The related accessories

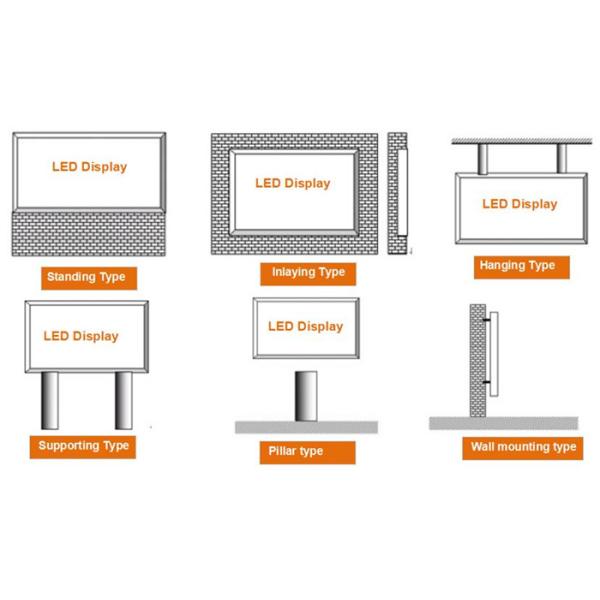

3. Multiple installation methods
Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products with good service for our clients.
